Description
The BOYA BY-WM3D 2.4GHz wireless microphone system features one transmitter and one receiver, both of them are compact and lightweight.
Ultra-compact Wireless Microphone System

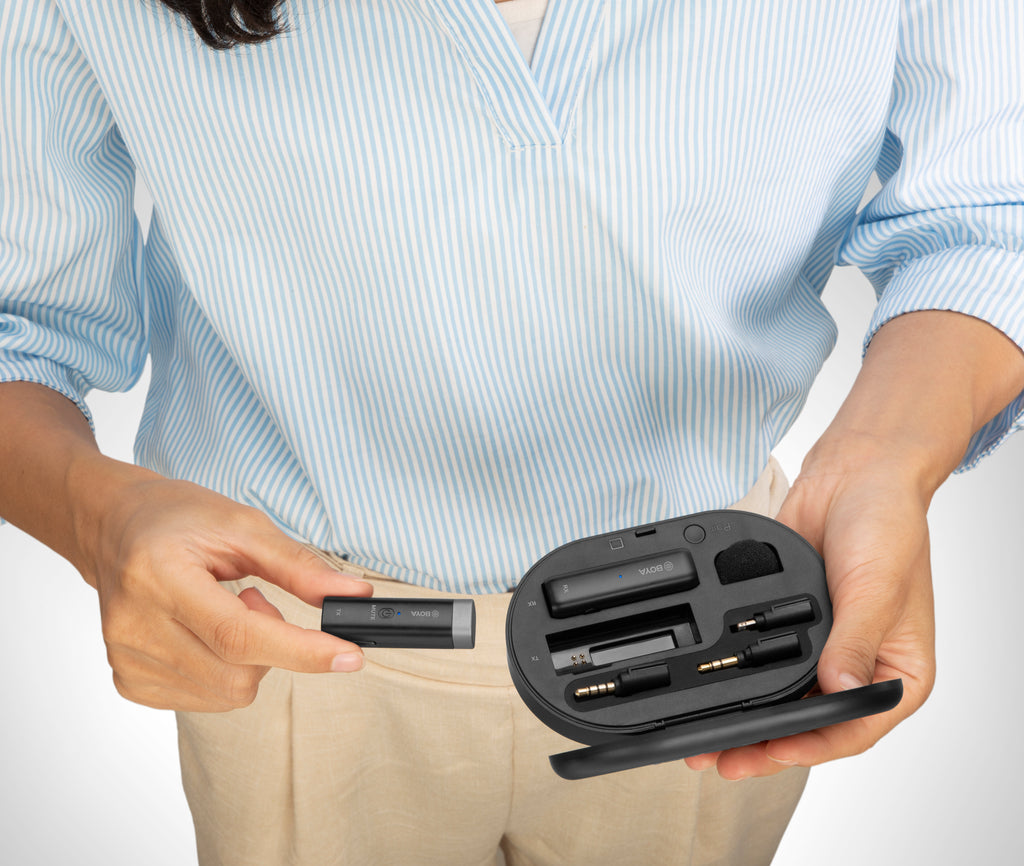

Small size & lightweight, the transmitter is only 10.5g (0.37oz). And the BY-WM3D is equipped with a charging case that can charge and pair the transmitter and receiver. After one full charge, the TX/RX can continue working for about 4.5/8 hours.
Three Interchangeable Connectors Make It Universal

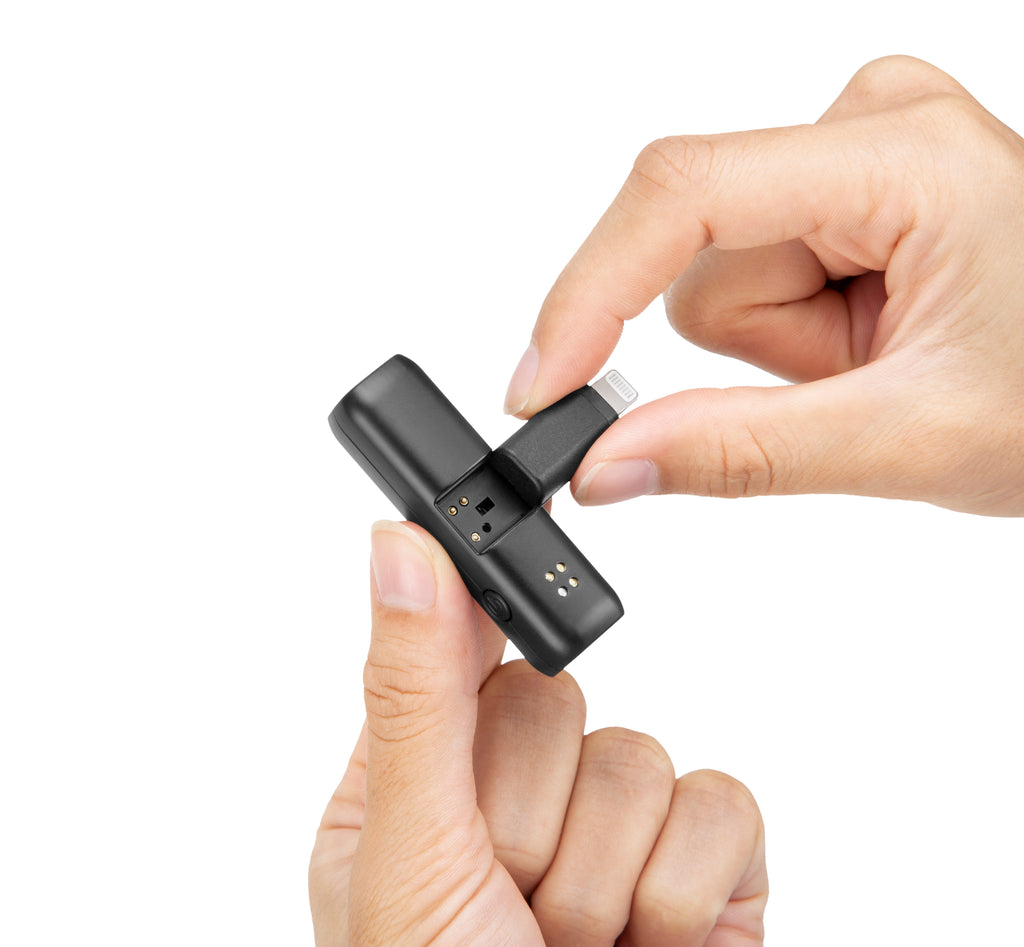

And just like the BY-WM3U, the receiver of BY-WM3D also features three interchangeable connectors, two of which are the same as the ones of BY-WM3U, namely TRS and TRRS connectors. But its last connector is Apple MFI certified Lightning connector. These three plugs make it compatible with all recording devices with Lightning or a 3.5mm input socket.
In-built Microphone to Avoid Hassle

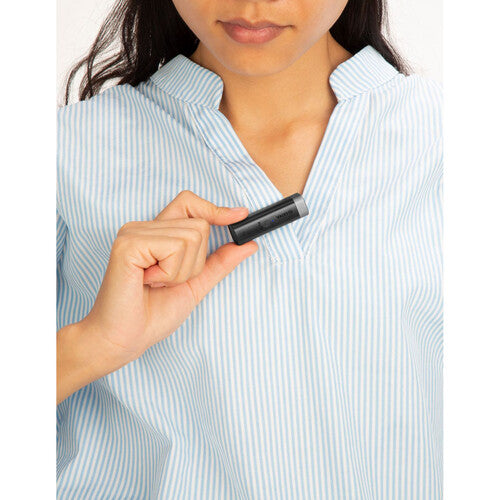

With an in-built omnidirectional microphone on the transmitter, it is easy to use. After pairing, just connect the receiver with your recording device, pin the transmitter on your collar to get started.

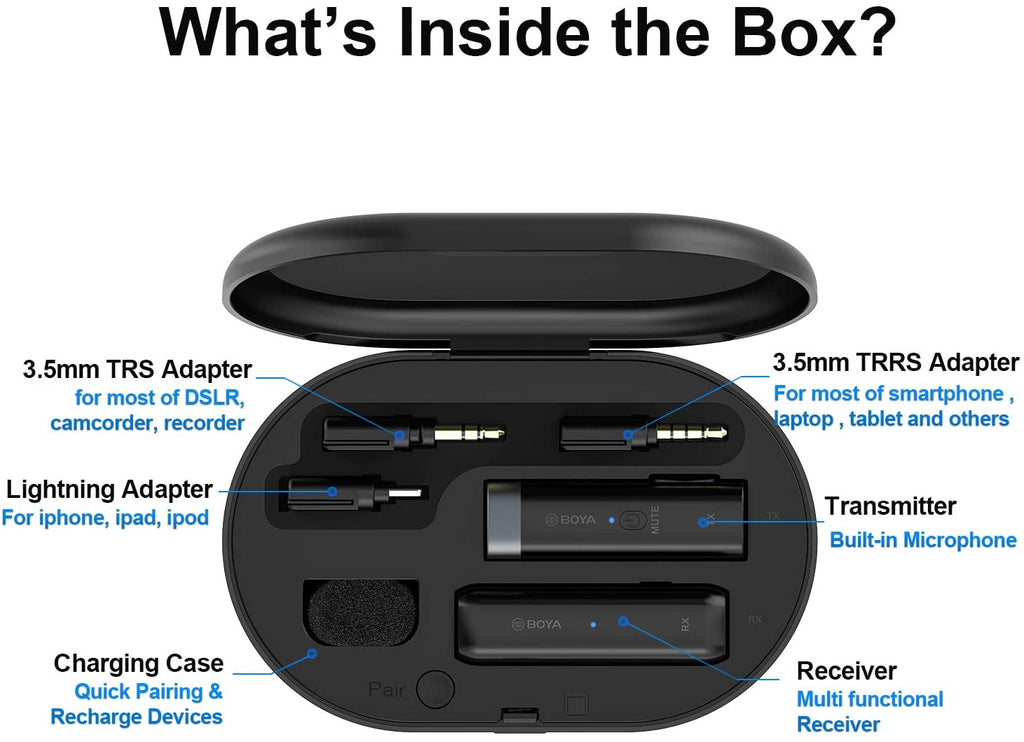

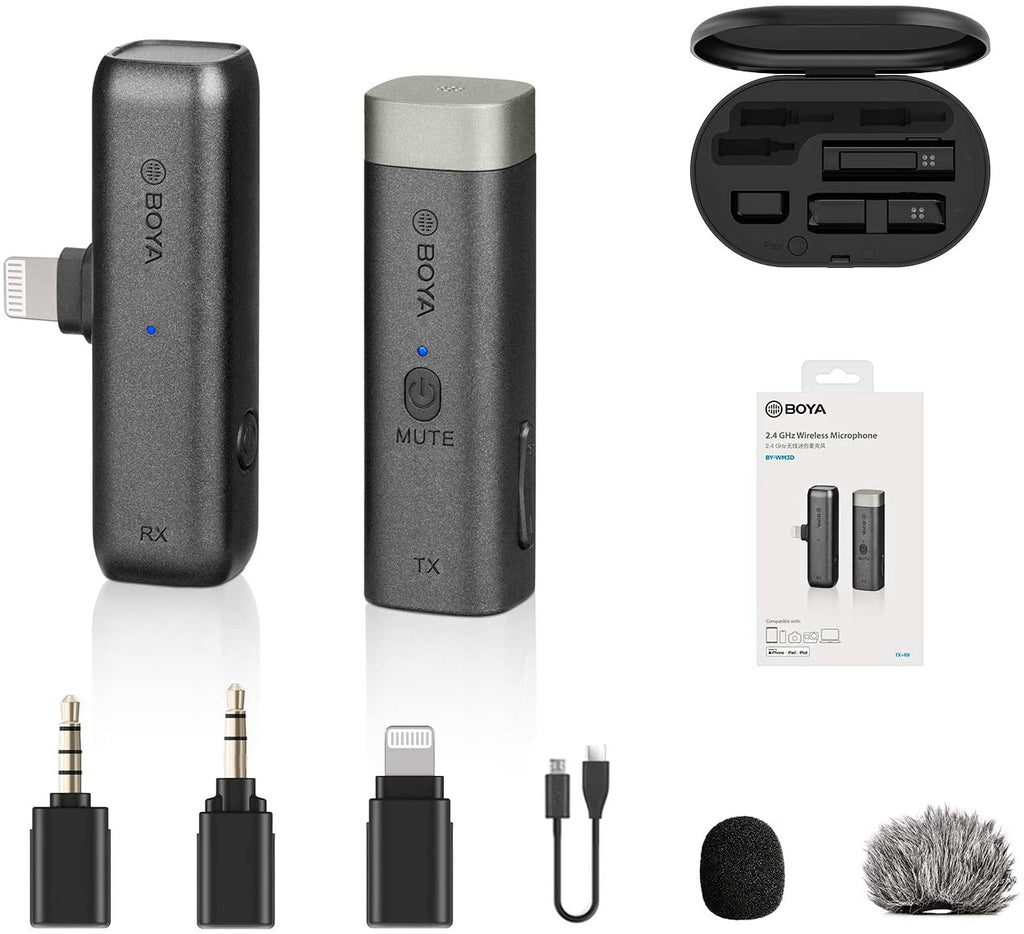

Packing Lists
• Charging Case
• Clip-on Minature Transmitter
• Professional Compact Receiver
• MFI Certified Lightning Adapter
• 3.5mm TRS Adapter
• 3.5mm TRRS Adapter
• Foam Windshield
• Fur windscreen
• 30cm/11.8"Type-C to USB-A Charging Cable
BOYA BY-WM3D Specs
System
| Wireless Transmission | Digital 2.4 GHz |
| Included Transmitters | 1 x Clip-On with Microphone |
| Diversity | Non-Diversity |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 65.6' / 20 m (Line of Sight) |
| Max Systems per Setup | 20 |
| Sample Rate/Resolution | 48 kHz / 16-Bit |
| Encryption | None |
Receiver
| Form Factor | Plug-In |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Male Unbalanced Output 1 x 1/8" / 3.5 mm TRRS Male Unbalanced Output |
| Frequency Response | 20 Hz to 20 kHz |
| Word Clock I/O | None |
| USB/Lightning Connectivity | 1 x Lightning (Audio) |
| Power Requirements | Battery |
| Battery Type | 1 x Built-In Rechargeable |
| Internal Battery Capacity | 100 mAh |
| Battery Charging Time | 2 Hours |
| Approx. Battery Life | 8 Hours |
| Display & Indicators | 1 x LED (Battery Status, Power, Recharging) |
| Dimensions | 0.6 x 2.1 x 0.6" / 15.6 x 54 x 15.6 mm |
| Weight | 0.3 oz / 9.5 g |
Transmitter 1
Transmitter
| Form Factor | Clip-On with Microphone |
| RF Output Power | 2.5 mW |
| Audio I/O | None |
| Muting | Off/On Switch |
| Auto-Level Control | No |
| Sync Method | Proprietary |
| Power Requirements | Battery |
| Battery Type | 1 x Built-In Rechargeable |
| Internal Battery Capacity | 100 mAh |
| Battery Charging Time | 2 Hours |
| Approx. Battery Life | 4.5 Hours |
| Display & Indicators | 1 x LED (Battery Status, Mute, Recharging) |
| Dimensions | 0.7 x 2 x 0.6" / 18 x 51.8 x 15.6 mm |
| Weight | 0.4 oz / 10.5 g |
Microphone
| Form Factor | Integrated |
| Sound Field | Mono |
| SNR | 83 dB |
| THD | < 0.1% |
Packaging Info
| Package Weight | 0.775 lb |
| Box Dimensions (LxWxH) | 7.65 x 4.25 x 1.85" |
